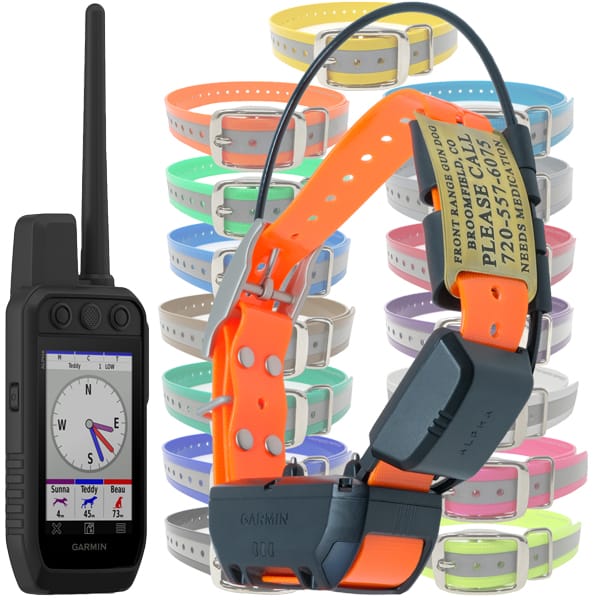

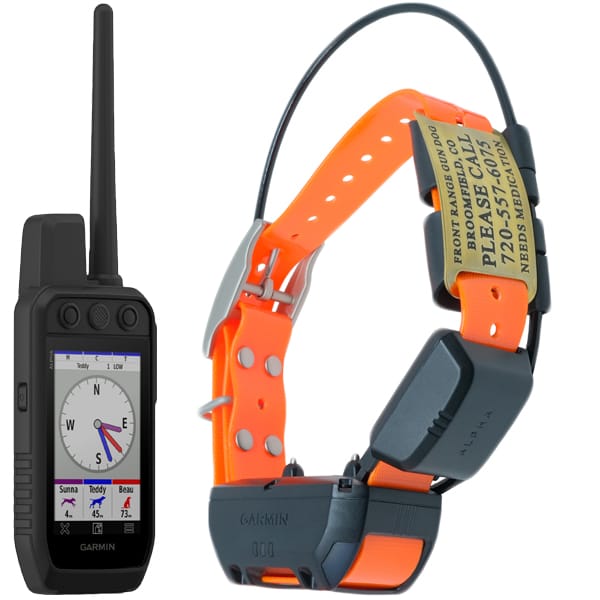

Garmin Alpha 200 Plus TT 25 Mini Bundle

Description

The Garmin Alpha 200 Plus TT 25 Mini Bundle enables you to track and train up to 20 dogs from up to 9 miles when paired with your compatible dog collars. See it all on a vivid 3.5” touchscreen display with up to a 2.5-second update rate. Easily control training functions using the button-operated design, which gives you 18 levels of stim, tone or vibration when paired to your training-enabled collar. Access premium Garmin navigation features, such as preloaded TopoActive maps, satellite imagery, and a built-in 3-axis compass and barometric altimeter. With up to 55 hours of battery life, you don’t have to worry about running out of power before your dogs do.

Garmin Alpha 200 Plus Features:

• • 55 hours of runtime is 3X more than the Garmin Alpha 200 handheld.
  • High Speed USB C charge and data port is much easier to connect than the old micro usb port found on the older Alpha 200/200i units.
  • 3.5″ color touch screen (works with thinner gloves)
  • Track and train 1-20 dogs at once
  • 9 miles line of sight tracking
  • IPX7 certified waterproof standards
  • 1 Year Garmin Warranty
  • Audible Tone and Vibration alerts
  • Quad Helix GPS
  • Removable 5″ VHF Antenna
  • Galilao Antenna for improved reception
  • 16GB Internal Memory
  • Up to 32G Micro SD card slot to load preprogrammed mapping
  • Includes preloaded TopoActive maps, downloadable satellite imagery and a built-in 3-axis compass and barometric altimeter
  • With an Outdoor Maps+ subscription, you have access to a wide variety of premium mapping content that is regularly updated and wirelessly delivered directly to your Alpha 200 Plus handheld when connected to a wireless network
  • User-replaceable rechargeable lithium-ion battery lasts up to 55 hours
  • Triggers 18 levels of stim, tone or vibration when paired with your training-enabled collar
  • Backward compatible with select existing collars and other Alpha handheld-compatible devices; transfer location data between compatible Garmin devices
  • Hunt metrics data shows each dog’s daily hunting patterns and behaviors
  • Use the Alpha app with your compatible smartphone to expand the utility and flexibility of your Garmin dog tracking system; follow your dogs’ movements, drop waypoints, navigate, and review statistics from your hunt
  • Receive automatic wireless updates for 200 Plus handled and Garmin Alpha TT 25 and T20 collars when connected to WiFi network.
  • Broadcast data from the Alpha 200 Plus to compatible Garmin watches for tight situations at-a-glance tracking displayed on the watch face.
  • Compatible with Garmin track and train collars: TT25, TT25 Mini, TT 25 Extended Battery,  TT15X, TT15, TT15 MINI, and TT10
  • Compatible with Garmin tracking collars: T20, T5X, T5, and T5 MINI.
  • Share your dog information with other Alpha users in your hunting party so they receive information like distance and direction for on point alarms.
  • Grant permissions to allow other Alpha users in your hunting party to correct your dogs.
  • Garmin Part Number: 010-04014-00
  • Weight: 9.9 oz (280 g) with standard antenna and battery
  • Dimensions: 2.7 x 6.4 x 1.3” (6.8 x 16.2 x 3.4 cm) *dimensions do not include antenna

  In the Box:

  • Alpha 200 Plus handheld with rechargeable lithium-ion battery pack
  • Belt clip
  • AC adapter
  • Charging/data cable
  • Documentation

Note:  All Videos are applicable to Garmin Alpha 200 and 300 series handhelds.

Setting Up Wi-Fi on Your Alpha 200 Plus:

Pairing an Alpha TT 25 Dog Collar to Your Alpha 200 Plus Handheld:

Controlling Beacon Lights on Your Alpha TT 25 Dog Collar from a Alpha 200 Plus Handheld:

How to Display Channel View on Your Alpha 200 Plus Handheld:

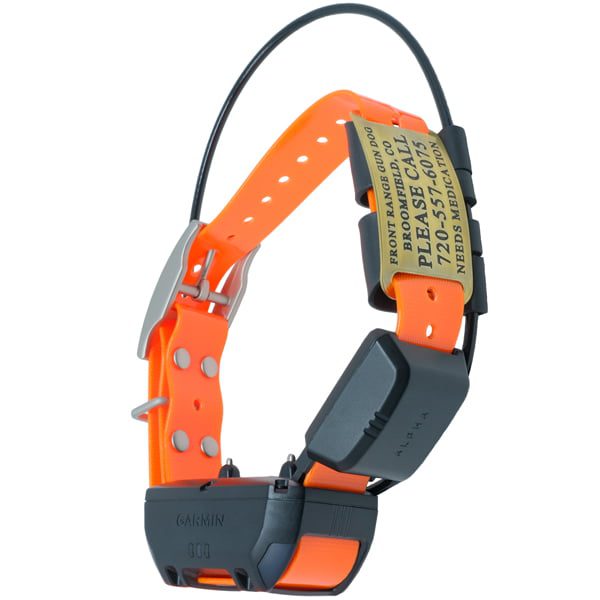

Garmin Alpha TT 25 Mini Dog Collar Features:

Garmin Alpha TT 25 Mini Dog Collar Features:

• For small dogs with neck sizes ranging from 7″ up to 22″ for the larger dogs.
• Track and send training commands up to 9 miles with updates as frequent as 2.5 seconds when used with a compatible handheld (sold separately).
• Use the collar to train your dog with 18 levels of continuous or momentary stimulation plus audible tone and vibration when used with a compatible handheld (sold separately).
• Rugged yet slim design is universally sized to fit large and small breeds.
• User-replaceable flex band
• Get extended battery life with dynamic tracking based on your dog’s movement
• Identify your dog, even in the dark, with a large, easy-to-see multicolor LED; colors include yellow, magenta, cyan, white, green, red or blue
• Collar LED status indicator:
  • Blue – pairing mode for adding to handheld
  • Yellow – acquiring GPS signal
  • Green  – GPS signal acquired and functioning
  • Red – low battery
• Get automatic updates when the Alpha® TT 25 Mini dog collar is charging and connected to your network with Wi-Fi® technology
• Pairs with Garmin dog tracking handhelds Alpha 300i, Alpha 300, Alpha 200 Plus, Alppha 200i, Alpha 200, Alpha 100, PRO 550 Plus,  Alpha 10 and Astro 430 (tracking only) (sold separately) ·
• Batteries are user-replaceable and easy to change
• When using dynamic tracking, a standard pack lasts up to 68 hours, and an upgraded expanded battery pack lasts up to 136 hours
• Charges via USB-C Cable
• Waterproof rating to 10 meters
• 1 Year Manufacturers Warranty

Garmin Alpha TT 25 Mini – In The Box:

• Alpha TT 25 mini dog collar with rechargeable lithium-ion battery pack and steel braided antenna
• 1″ collar strap of color choice
• 3 additional antenna clips
• Charging clip
• USB-C cable
• Short and long plastic contact points with wrench
• Documentation

Setting Up Wi-Fi Software Updates on the Alpha TT 25 Dog Collar from the Alpha 200 Plus Handheld Transmitter:

Setting Up Wi-Fi Software Updates on the Alpha TT 25 Dog Collar Via Garmin Express:

Battery Replacement for the Alpha TT 25 Dog Collar:

Replacing the GPS Flexband Antenna on a Garmin Alpha TT 25 Dog Collar:
